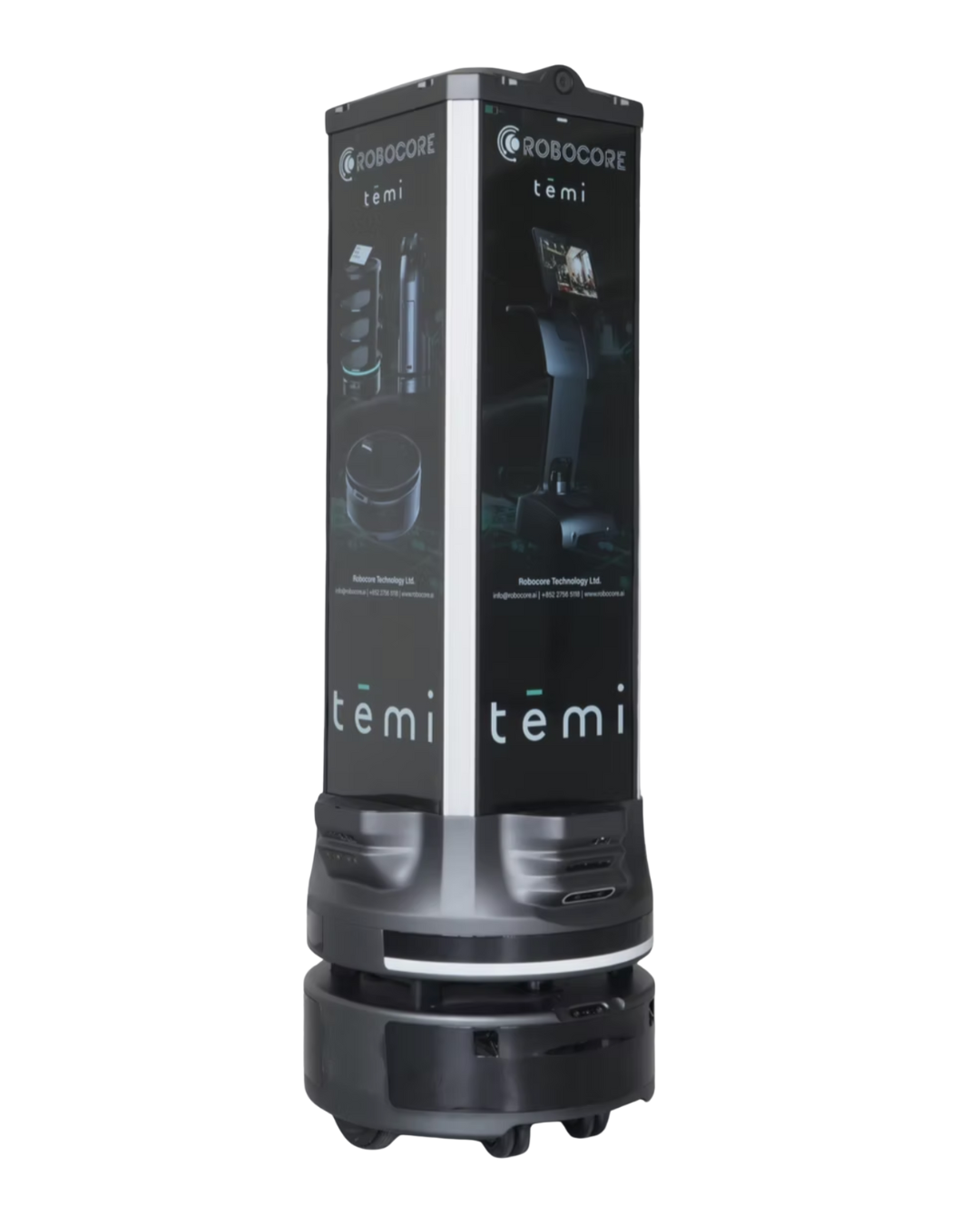

Robocore Fourcast - Mobile Advertising Robot

Please note: lead time for the Robocore Fourcast once ordered is approximately two months after purchase.

Experience the future of advertising with our cutting-edge Mobile Advertising Robot, designed for high-performance autonomous navigation. Built on the Temi platform, this intelligent advertising robot seamlessly integrates multiple functional modules, including:

• Four-sided 38.8-inch screens

• Projectors for dynamic visuals

• Depth cameras & LiDAR for precise mapping

• Cliff sensors & obstacle detection cameras for enhanced safety

These advanced features allow businesses to deliver innovative, eye-catching, and interactive advertising experiences like never before.

Specifications

Weight

• Net Weight: 150 lbs

Size

• Diameter: 19.7 in.

• Height: 58.3 in.

Mapping & Navigation

• Max Map Size: 215,278 sq. ft.

• Number of Locations: 1,000

Floor Navigation

• Max Barrier Height: 0.47 in.

• Max Slope Angle: 5°

• Max Gap Width: 1.57 in.

Movement

• Linear Speed: 3.2 ft/sec

• Spin Radius: 0 in.

Sensors

• Detectable Obstacle Height: 4.7 – 59 in.

• Ground Obstacle Detection Range: 1.9 – 47 in.

• Minimum Detectable Ground Obstacle Height: 0.78 in.

• Minimum Cliff Height Detection: 0.78 in.

• LiDAR Range: 114.8 ft.

Display Screen

• Size: 37 x 10.6 in.

• Resolution: 1920 x 561

• Color Display: 16.7 million colors

• Voltage: 12V

Camera

• Frame Rate: 30 fps

• Resolution:

• Depth: 640 x 480

• RGB: 1280 x 800

• Distance Range: 12 – 137.8 in. (subject to lighting conditions)

Projection

• Projection Area: 17.3 – 20.5 x 16.5 in.

• Projection Distance: 17.7 – 35.4 in.

• Resolution: 854 x 480

• Brightness: 65 lumens

• Voltage: 5V

Battery & Power

• Operation Time:

• Normal Usage: 6 hrs

• Heavy Usage: 4 hrs

• Charging Time (0 – 100%)

• Power OFF: 4 hrs

• Power ON: 6 hrs

• Output Voltage:

• Upper Component: 29V

• Temi Platform (Output to Upper Component): 19.6 – 28.7V

• Capacity:

• Upper Component: 40Ah

• Temi Platform: 500W

• Charging Voltage:

• Upper Component: 25.2V

• Temi Platform: 29.4V

Charging Dock

• Dimensions (L x W x H): 7.9 x 12 x 10.8 in.

• Weight: 7.8 lbs

• Input Voltage & Current: 100 – 240V, 15A

• Output Voltage & Current: 29.4V, 20A

External Battery

• Dimensions (L x W x H): 19.7 x 19.7 x 2.6 in.

• Weight: 19 lbs

Support & Connectivity

• Wi-Fi & 4G Connectivity

• Web Interface: Robot Intelligent Advertising Management Platform
